3DGuidance medSAFE

更新：2020/6/1??????點擊：

品牌：???Ascension
型號：???3D Guidance medSAFE

產品介紹

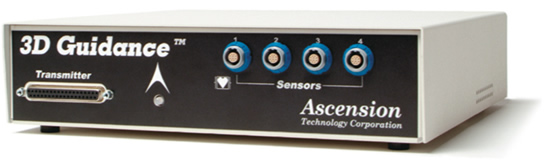

3D Guidance medSAFE comprises an electronics unit with multiple transducer and interface options, and is used for the guidance of medical instruments with pulsed DC magnetic sensors.

Track up to eight miniaturized 6 DOF sensors or twenty-four 5 DOF sensors simultaneously
Localize in 3D without ionizing radiation
Guide flexible tools without line-of-sight restrictions
Overcome limitations of earlier generation medical trackers
Navigate catheters, probes, and scopes with low cost, disposable sensors

Sensor Details:

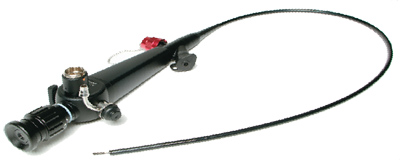

3D Guidance’s miniaturized sensors are routinely deployed in medical instruments and catheters for safer and less intrusive tracking and localization. Here a 1.3 mm sensor is seen protruding from the working channel of a bronchoscope.

Sensors with sub-millimeter diameters are available to extend the reach of catheters and scopes deep into the periphery of organs and vessels. Acension supports a full range of sensors for minimally invasive procedures. Its new 0.3 mm sensor is the smallest magnetic sensor in the world. It was designed for vascular, urological and cardiac procedures. If disposable sensors are required for your application; please request special pricing to receive a significant discount for large quantity orders. Sensor specifications are as follows.

Class 1 Type CF (applied part); Defib Proof
1.3 mm sensor
Unencapsulated Sensor [CAN BE SUBMERGED IN liQUID]: Max OD 1.3 mm; length 6.5 mm with 0.6 mm OD cable, 1.8 m in length
Encapsulated in Medical Grade Catheter Vinyl Tubing Sensor [DO NOT SUBMERGE IN liQUID]: Max OD 1.8 mm
1.8 mm sensor
Unencapsulated Sensor [CAN BE SUBMERGED IN liQUID]: Max OD 1.8 mm; length 8.4 mm with 0.6 mm OD cable, 1.8 m in length
Encapsulated in Medical Grade Catheter Vinyl Tubing Sensor [DO NOT SUBMERGE IN liQUID]: Max OD 2.4 mm
Ascension Medi-Mag Cable, USP class 6 jacket material or vinyl encapsulated cable
USP class 6 epoxy sensor housing
USP 6 polyester protective wrap (bare sensor only)
Maximum temperature 150° C
Sensor assembly and cable materials are EtO, gamma and cold sterilant tolerant
Semiconductor devices in connector are not gamma shielded and may be damaged or erased if exposed to Gamma radiation

Transmitter Options:

3D Guidance's multiple transmitter options enable its use in medical environments once unsuitable for magnetic tracking.

Flat Transmitter (left)
“Metal-Immune” ±20 cm X, Y -10--46 cm Z coverage

Set-Up & Use: Our flat transmitter is unobtrusively placed beneath a patient to negate any possible distortion of measurements by ferrous metal in an OR or procedural table.

Mid-Range Transmitter (centre)
20-61cm X 15-30 cm Y, Z
coverage

Set-up & Use: The mid-range transmitter is ideal for desktop applications in environments containing conductive metals.

Short-Range Transmitter (right)
20-36 cm X 8-15 cm Y, Z
coverage

Set-up & Use: This small, light-weight transmitter is often mounted on an articulated arm that can be brought close to its sensors. Especially useful for high accuracy medical applications.

Components in Default Unit:

1 3D Guidance Electronics Unit in Enclosure
1 3D Guidance Short-Range, Mid-Range OR Flat “Metal-Immune” Transmitter
micro 6DOF Sensor (1.3 or 8 mm) with 6 ft (1.8 m) Cable
Ships with North American Power Cord **If different power cord configuration needed please specify**
Interface Software Module CD-ROM and Floppy Diskette
1 Year Warranty, Life Time Technical Support, User Manual, and winBIRD? Windows Software
